Industrial Rubber Hose

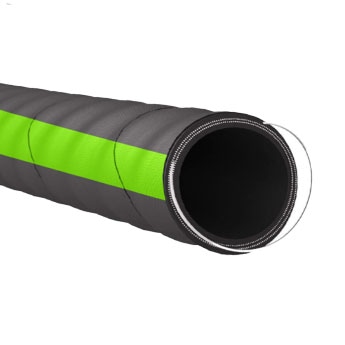

Rubber Corrugated Water Suction Hose
- Tube:Black conductive NR-Abrasion Resistant
- Cover: Black conductive SBR/NR-abrasion and ozone resistant.
- Temperature: -40°C to 90°C
- Packing: Plastic inner side and woven outer side,Color packing or customized.
- Product description: Corrugated Water Suction Hose,Wire Reinforced Hose
Corrugated Water Suction Hose,Steel Wire Reinforced Hose
Application:Suctioning and transproting water or other neutral fluids at room temperature.
It can be used as input pipe or output pipe for water pumping in mining,
agricultural irrigation,construction work or other industrial fields.
| I.D.(mm) | Inch | Layers | O.D.(mm) | Mpa(w.p) | kg/m(w.t.) | lb/ft(w.t.) | Max.(m) |
| 25 | 1“ | 2 | 48 | 1.5 | 1.23 | 0.82 | 10 |
| 32 | 11/4" | 2 | 56 | 1 | 1.46 | 0.98 | 10 |
| 38 | 11/2" | 2 | 62 | 0.8 | 1.92 | 1.29 | 10 |
| 51 | 2" | 2 | 75 | 0.7 | 2.56 | 1.72 | 12 |
| 64 | 21/2" | 2 | 88 | 0.6 | 3.1 | 2.08 | 12 |
| 64 | 21/2" | 3 | 90 | 0.8 | 3.45 | 2.31 | 12 |
| 76 | 3" | 3 | 102 | 0.6 | 4.52 | 3.03 | 12 |
| 102 | 4" | 3 | 128 | 0.5 | 5.83 | 3.91 | 12 |
| 102 | 4" | 4 | 130 | 0.7 | 6.45 | 4.32 | 12 |
| 102 | 4" | 7 | 136 | 1 | 8.1 | 5.43 | 12 |
| 127 | 5” | 4 | 157 | 0.7 | 9.35 | 6.26 | 10 |
| 152 | 6“ | 5 | 184 | 0.8 | 11.71 | 7.85 | 10 |
| 203 | 8” | 5 | 235 | 0.5 | 14.61 | 9.79 | 10 |
