Textile Reinforced Hoses

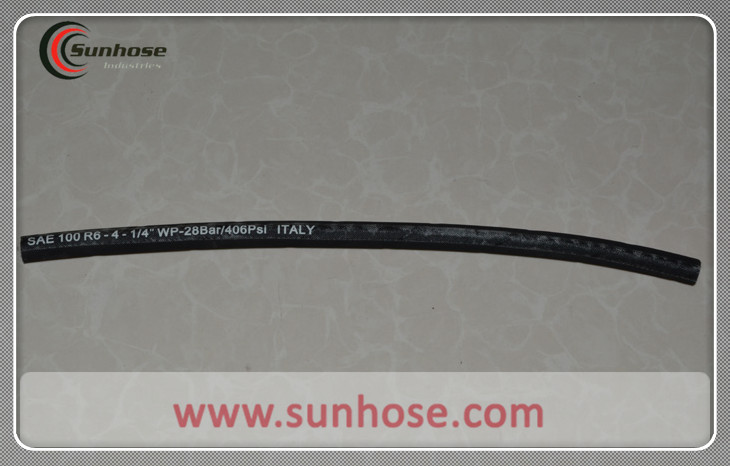

SAE 100 R6 Hydraulic Hose
- Tube:Synthetic rubber.
- Reinforcement:One textile braid (1T/B).
- Cover:abrasion and weather resistant synthetic rubber
- Product description: Hydraulic Hose SAE 100 R6-EN 854 R6 with Low Pressure.
Hydraulic Hose - SAE 100 R6
| Application:This section covers hose for use with petroleum base hydraulic fluids. |
|
Construction:This hose consist of an inner tube of oil resistant synthetic rubber,one braid of suitable fiber, and an oil and weather resistant synthetic rubber cover. |
| Temperature Range:-40°C To +100°C (-40°F To +212°F) |
|
Couplings: Contact fitting manufacturer for proper fitting recommendation and coupling procedure. Or order it together with hoses from Sunhose-- Hydraulic Adapter and fittings. |
|
SIZE
|
Hose ID
|
Hose OD
|
Working Pressure
|
Burst Pressure
|
Bend Radius
|
Weight
|
|||
|
mm
|
inch
|
mm
|
mm
|
Mpa
|
Psi
|
Mpa
|
Psi
|
mm
|
kg/m
|
|
5
|
3/16
|
4.8
|
11.1
|
3.4
|
500
|
13.8
|
2000
|
50
|
0.11
|
|
6
|
1/4
|
6.4
|
12.7
|
2.8
|
400
|
11.0
|
1600
|
65
|
0.15
|
|
8
|
5/16
|
7.9
|
14.3
|
2.8
|
400
|
11.0
|
1600
|
75
|
0.16
|
|
10
|
3/8
|
9.5
|
15.9
|
2.8
|
400
|
11.0
|
1600
|
75
|
0.18
|
|
13
|
1/2
|
12.7
|
19.8
|
2.8
|
400
|
11.0
|
1600
|
100
|
0.26
|
|
16
|
5/8
|
15.9
|
23.0
|
2.4
|
350
|
9.7
|
1400
|
125
|
0.29
|
|
19
|
3/4
|
19.0
|
26.6
|
2.1
|
300
|
8.3
|
1200
|
150
|
0.40
|
Note:Subject to changes without notice.
