Steel Wire Spiral Hydraulic Hose

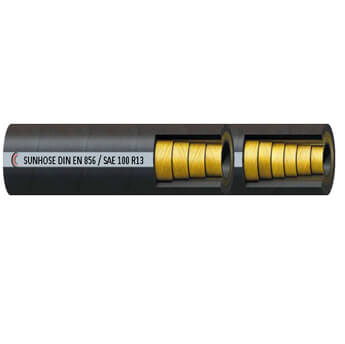

SAE 100 R13 Hydraulic Hose
- SAE 100 R13 Hydraulic Hose
- Reinforcement: Four alternating layers of spiralled high-tensile steel wire (sizes 3/4
- Cover: Abrasion and weather resistant synthetic rubber.
- Product description: Hydraulic Hose SAE 100 R13,Very High Pressure rubber hose
Hydraulic Hose - SAE 100 R13
|
Application:Very high pressure applications subject to surges or flexing such as construction equipment, mining and the high performance industrial market. |
|
Construction:This hose consist of an inner tube of oil resistant synthetic rubber,multiple spiral plies of heavy steel wire wrapped in alternating directions,and an oil and weather resistant synthetic rubber cover. |
| Temperature Range:-40°C To +120°C (-40°F To +248°F) |
|
Couplings: Contact fitting manufacturer for proper fitting recommendation and coupling procedure. Or order it together with hoses from Sunhose-- Hydraulic Adapter and fittings. |
|
SIZE
|
Hose ID
|
Wire OD
|
Hose OD
|
Working Pressure
|
Burst Pressure
|
Bend Radius
|
Weight
|
|||
|
mm
|
inch
|
mm
|
mm
|
mm
|
Mpa
|
Psi
|
Mpa
|
Psi
|
mm
|
kg/m
|
|
19
|
3/4
|
19.0
|
28.4
|
32.1
|
34.5
|
5000
|
138.0
|
20000
|
240
|
1.68
|
|
25
|
1
|
25.4
|
35.2
|
38.7
|
34.5
|
5000
|
138.0
|
20000
|
300
|
2.24
|
|
32
|
1-1/4
|
31.8
|
47.0
|
52.0
|
34.5
|
5000
|
138.0
|
20000
|
420
|
3.9
|
|
38
|
1-1/2
|
38.1
|
48.8
|
57.7
|
34.5
|
5000
|
138.0
|
20000
|
500
|
5.07
|
|
51
|
2
|
50.8
|
63.2
|
71.5
|
34.5
|
5000
|
138.0
|
20000
|
630
|
7.91
|
Note:Subject to changes without notice.
3/4" to 1" ( 4 wire)
1-1/4" to 2"(6 wire)
